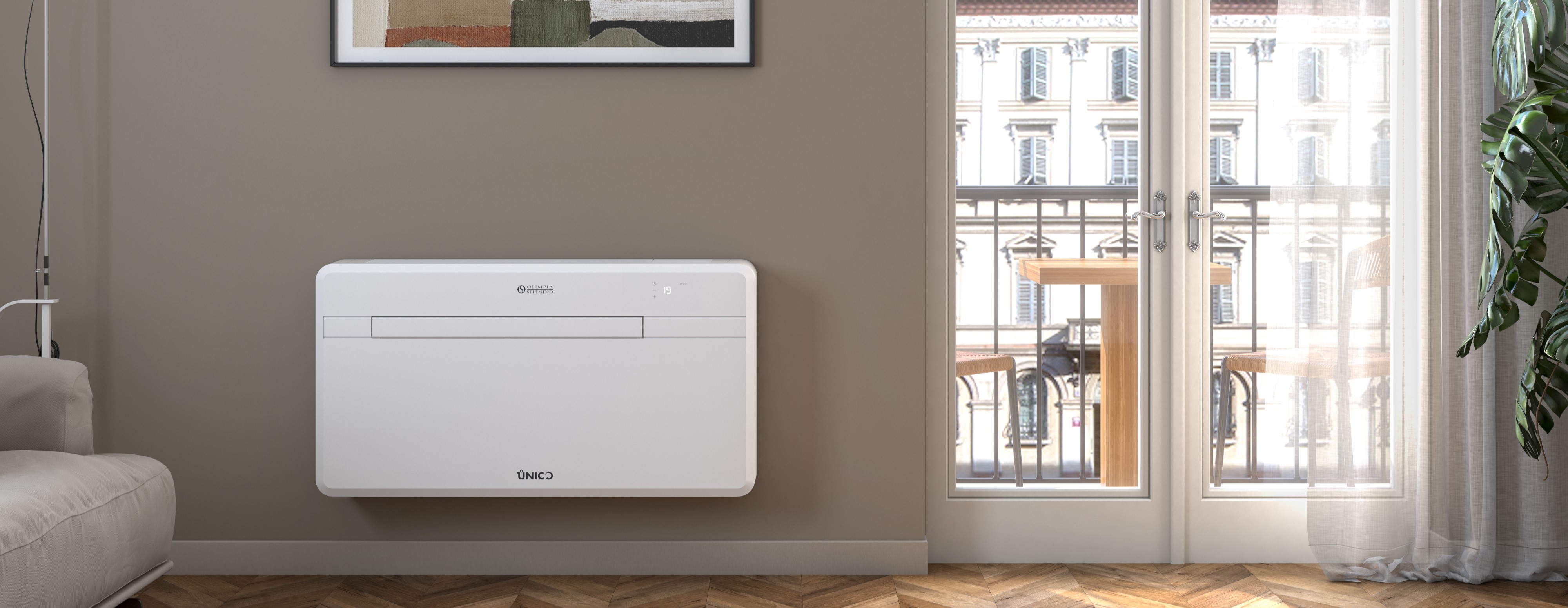

Unico Next 12 HP EVANX

The heat pump air conditioner with no outdoor unit that redefines the standards of the category to bring maximum comfort into the home, with minimal architectural and environmental impact. On the outside: only two holes, to respect - as always - the beauty of homes and cities. On the inside: innovative technology that encloses, in a streamlined and easy-to-maintain design, a mix of components whose perfect synchronization defines its strength. Unico Next today with electrical resistance.



REQUEST INFORMATION Download

Overview

SILENT MODE
With the Silent Mode function active (compressor on), it reaches a maximum of 30 dB(A).
With the Silent Mode function active (compressor on), it reaches a maximum of 30 dB(A).
ECO-FRIENDLY PACKAGING
100% recyclable packaging, in FSC certified cardboard, and 98% plastic free.
100% recyclable packaging, in FSC certified cardboard, and 98% plastic free.
SYNC POWER SYSTEM
The new Twin Rotary compressor and the latest generation electronics are synchronised to obtain the best acoustic comfort, in all operating conditions.
The new Twin Rotary compressor and the latest generation electronics are synchronised to obtain the best acoustic comfort, in all operating conditions.
MODULATING ELECTRIC HEATING ELEMENT
Below a certain outside temperature, the unit automatically switches from heat pump to electric heating to ensure comfort even with the coldest outside temperatures. The switching temperature can be set during installation (factory setting of 4°C). The electric heating element has a modulating function, the power output varies depending on the set ventilation speed (1.50kW at Vmin, 1.75kW at Vmed and 2.00kW at Vmax).
Below a certain outside temperature, the unit automatically switches from heat pump to electric heating to ensure comfort even with the coldest outside temperatures. The switching temperature can be set during installation (factory setting of 4°C). The electric heating element has a modulating function, the power output varies depending on the set ventilation speed (1.50kW at Vmin, 1.75kW at Vmed and 2.00kW at Vmax).

Features

Max power: 3,1 kW
Available in the HP version (heat pump). In the absence of condensate drain, during installation the machine can be configured in the "COLD ONLY" version, deactivating the heating function. If necessary, it is also possible to configure it in "HEAT ONLY", deactivating the cooling function.
Cooling class: A
Coolant gas: R32

Internal layout of the machine rationalised and optimised for easy maintenance.

Large flap for homogeneous diffusion of air in the environment

Equipped with electrostatic filter and air filter activated carbon

Backlit display with touch controls on the machine.

On/off contact for enabling or energy boost.

There is an RS485 port designed to control the air conditioner with external BMS in Modbus RTU language.





Smart Control



With OS HOME you can set, programme and control your UNICO whenever and wherever you want.

More info


Download

Product catalogue
User manual
Installation template
CE Declaration
Energy Label
Wi-Fi manual
