Unico Twin S1

The no outdoor unit system for the air-conditioning of two rooms.

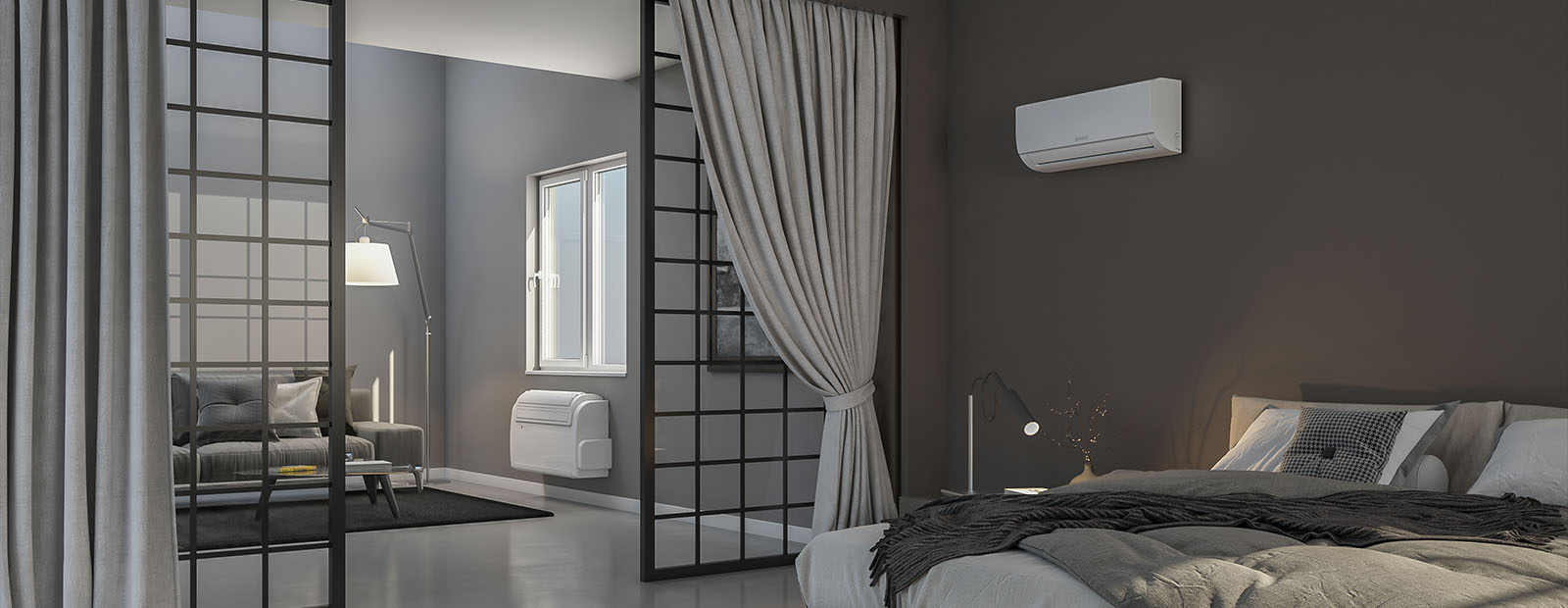

It is composed by the UNICO TWIN MASTER unit and the new UNICO TWIN WALL S1 unit that, linked by a cooling circuit, air-condition 2 rooms without outdoor unit. The outdoor unit? Removed! Only two holes can be seen on the external surface.



REQUEST INFORMATION Download

Overview

EASY TO INSTALL
Unico Twin can be installed from the inside in a few minutes.
Unico Twin can be installed from the inside in a few minutes.
TWIN TECHNOLOGY
Allows the use of the two units (Master unit and Wall unit) simultaneously or separately
Allows the use of the two units (Master unit and Wall unit) simultaneously or separately

Features

SYSTEM features
Independent or combined mode: if you choose simultaneous mode the two units share the available power *
Available in versions: HP (Heat pump)
Double class A
Refrigerant gas R410A**
Multifunction double remote control
24h Timer

MASTER features
Cooling capacity: 2.6 kW
HP mode capacity (heat pump): 2.5 kW
Installation versatility: top or bottom wall installation
Possible glass installation*
Easy installation: Unico Twin can be installed from the inside in a few minutes
Large flap for a homogeneous diffusion of the air in the environment

WALL S1 features
Nominal cooling capacity: 2.6 kW
Nominal heating capacity: 2.5 kW
Sound power level: 46 dB(A)

FUNCTIONS
Fan only mode
Dehumidification only mode
Auto mode: changes parameters depending on ambient temperature.
Sleep mode: gradually increases the temperature set and ensures reduced
noise for greater wellbeing at night.

* During simultaneous operation the inside units are forced at minimum speed.
** Not ermetically sealed equipment containing fluorinated gas with GWP equivalent 2088.

Download

Condensation drain instructions
User manual
Energy Label
Product catalogue
Installation template
CE Declaration
