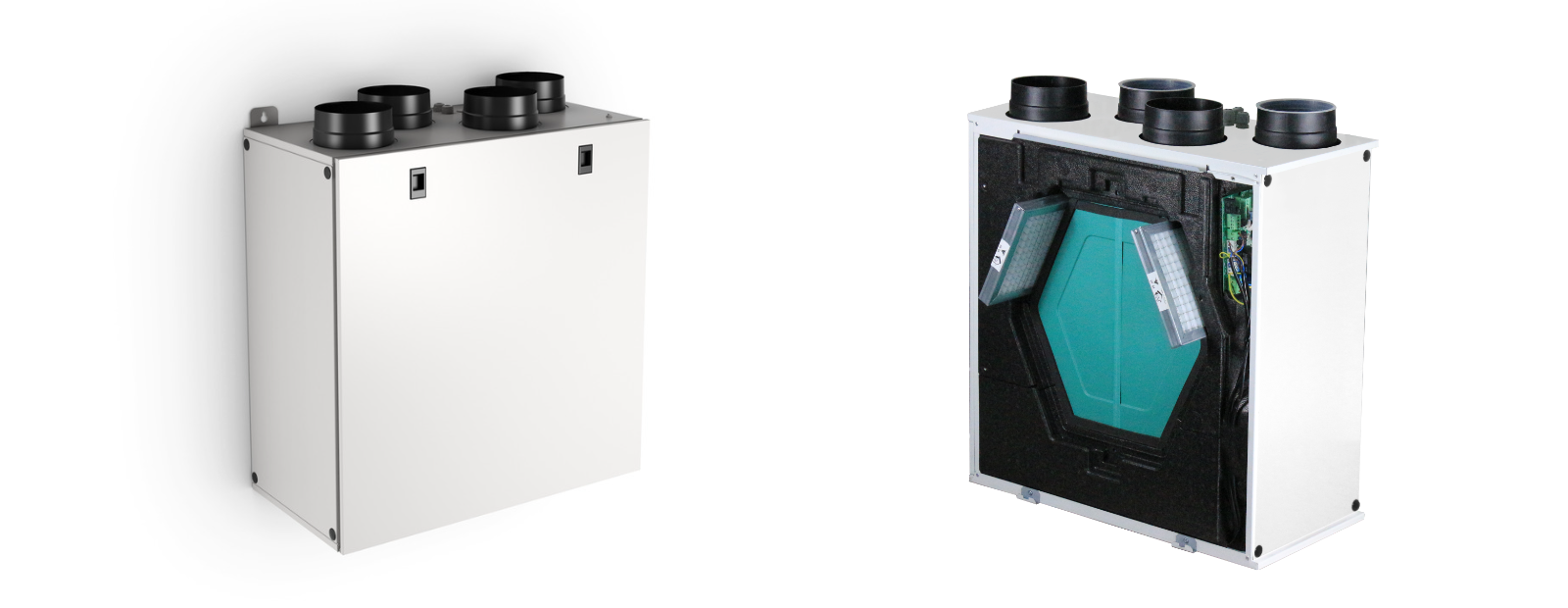

Sitali CX 280

The Sitali CX 280 ducted VMC unit, dual-flow with heat recovery, can be installed vertically on the wall (with left or right configuration, for maximum flexibility). It has a maximum air flow rate of 256 m3/h and is available in two versions, with or without a multifunction control panel. With its built-in physical bypass, the Sitali CX 280 unit is ideal for "free cooling" operation during the summer season.

REQUEST INFORMATION Download

Overview

INTEGRATED PHYSICAL BYPASS

Ideal for “free cooling” operation during the summer

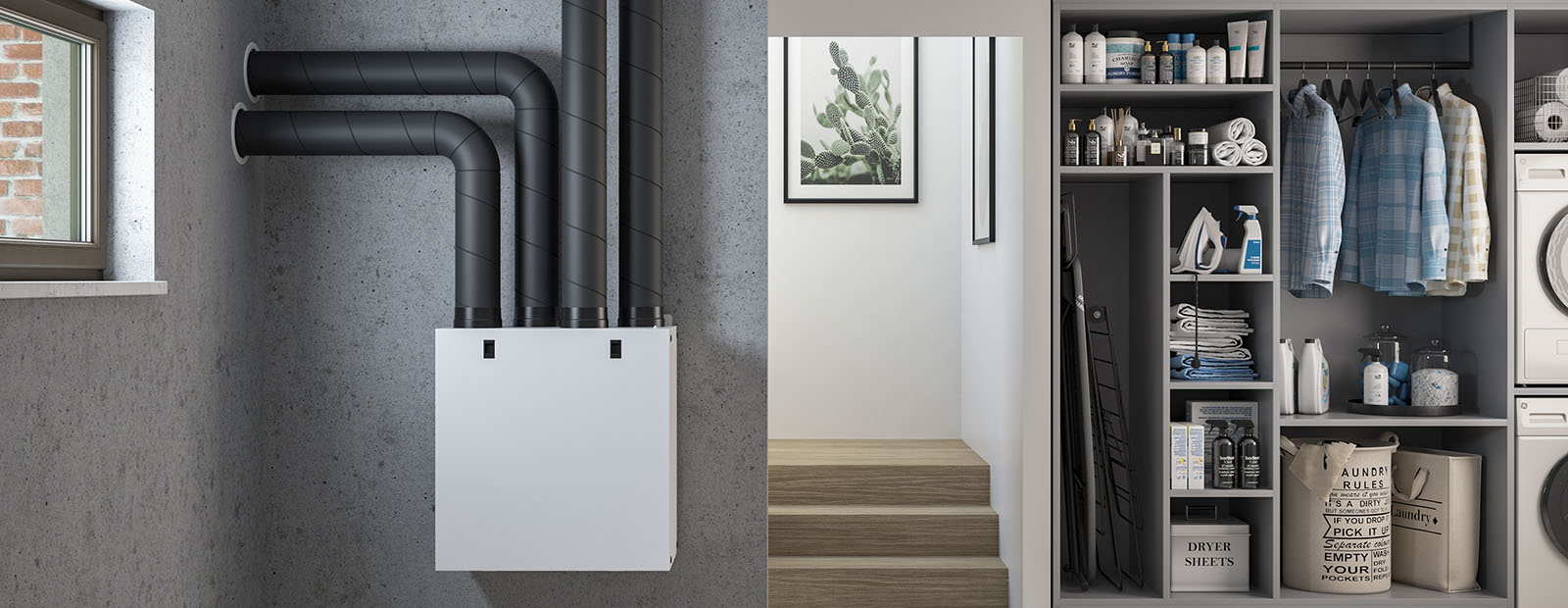

VERTICAL INSTALLATION

Suitable for wall installation in a vertical position.

MANUAL OR AUTOMATIC CONTROLS

Sitali CXVA 280 features a multi-function control panel with LCD display (see image on the side). Sitali CXVM 280 does not have controls and must be combined with an S-type control (simplified, one of codes B1061, B1062, B1063).

Features

Version with CXVA 280 automatic control

3-speed setting and selection.
Boost function.
Holiday and Night Mode function.
Weekly programming.
By-pass control
Air flow balancing.
Filter maintenance and fault indicator.
Hour count indicator
Settings savings and uploading.
Connection to remote room sensors (humidity, CO2, etc.)
ModBus interface.
Connection to electric heating element before and after the ventilation unit.
Connection to water heating coil

Version with CXVM 280 manual control

Three-speed operation with simplified external S-type control, which also allows manual activation of the bypass.
