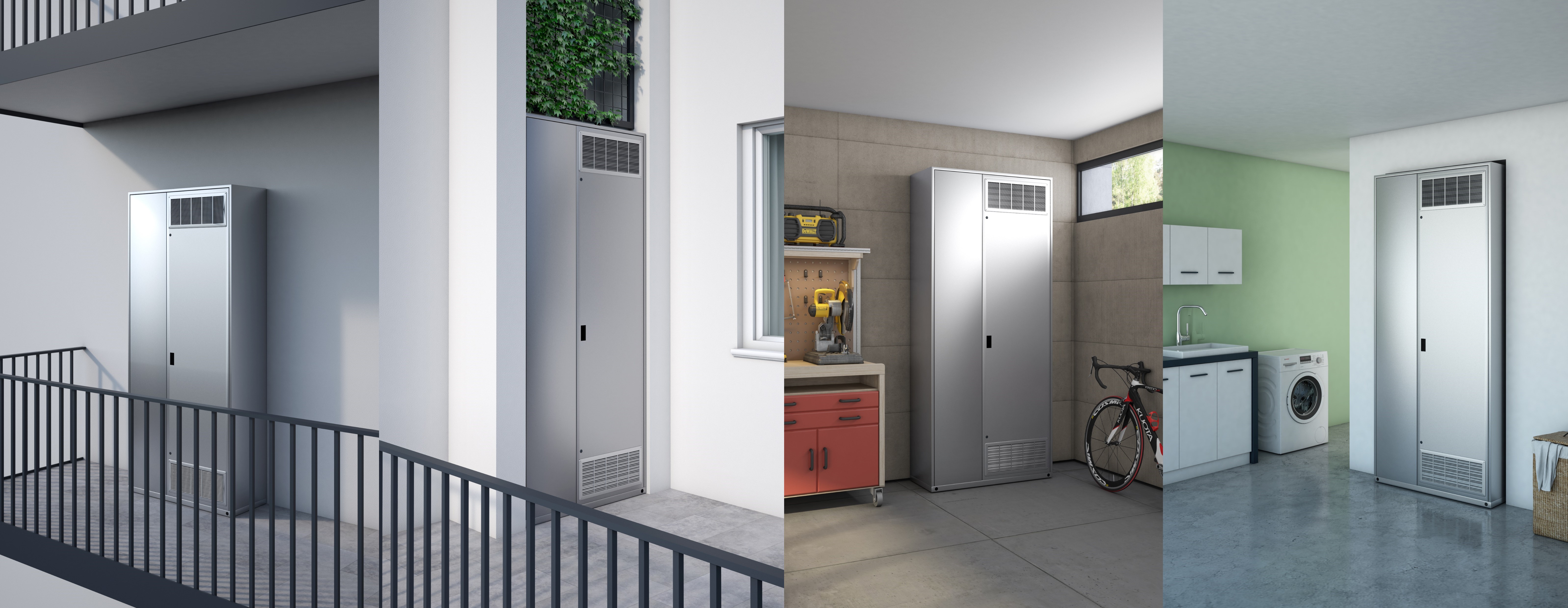

Sherpa Flex Box AS kit is the technical cabinet that makes it possible to create a compact system in heat pump with high installation flexibility. The multi-purpose heat pump (Sherpa Aquadue) and the class C storage tanks make it possible to obtain a very high energy efficiency of the system, even in outdoor installation.
Dimensions (W x D x H): 998 x 415 x 2280 mm System connections from below or from the back Condensate trap to prevent any dripping of the condensation on the bottom of the cabinet Possible combination with display remote control kit (B0931) The distribution and heat emission network downstream of Sherpa Flex Box AS must ensure the circulation of the minimum flow rate of the heat pump in all operating conditions by means of 3-way valves or by-pass systems, in addition, for heat pump sizes 8 and 10, the water content of the distribution network and of the fan coil units must be at least 10 litres (refer to the product installation manuals).
Compatibility with:
SHERPA AQUADUE S2 E 4 (UI Sherpa Aquadue S2 E Small 02042)
SHERPA AQUADUE S2 E 6 (UI Sherpa Aquadue S2 E Small 02042)
SHERPA AQUADUE S2 E 8 (UI Sherpa Aquadue S2 E Small 02042)
SHERPA AQUADUE S2 E 10 (UI Sherpa Aquadue S2 E Small 02042)
