Sherpa SHW S2

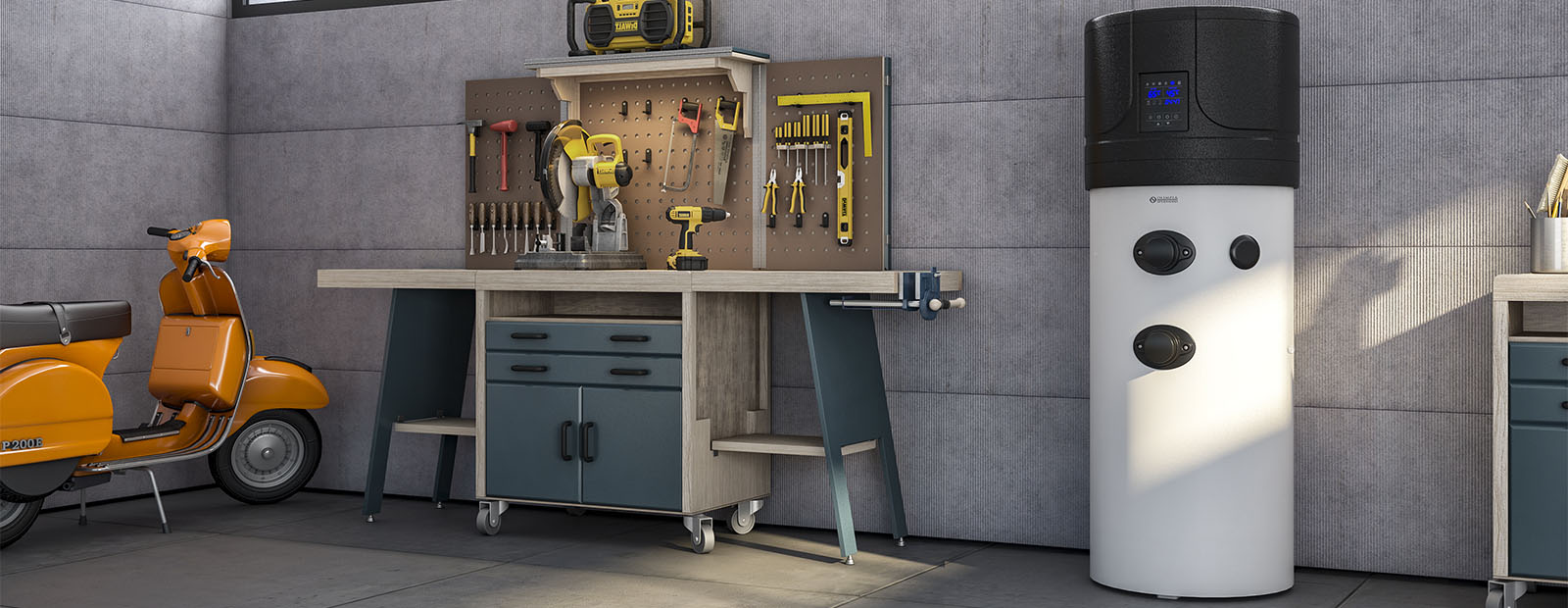

Olimpia Splendid's heat pump water heater was created as a more efficient and sustainable alternative to the traditional water heater (gas or electric) for the production of DHW in residential and other applications. Available in two different sizes, it ranks among the solutions that best optimise energy consumption, not only for its intrinsic technology (heat pump), but also for its performance at the highest level in its category. The compact design, with its slender shape, also reduces the overall surface area to just 630 mm, making it easier to place inside the technical room.

REQUEST INFORMATION Download

Overview

HIGH EFFICIENCY
Sherpa SHW S2 achieves the highest energy class in its category (according to the ErP regulation).
Sherpa SHW S2 achieves the highest energy class in its category (according to the ErP regulation).
PHOTOVOLTAIC INTEGRATION
Contact for integration with photovoltaic plant, which forces switch-on and raises the machine set-point. Th e energy produced by the photovoltaic system is stored to lower the DHW production costs and maximise the energy saving.
Contact for integration with photovoltaic plant, which forces switch-on and raises the machine set-point. Th e energy produced by the photovoltaic system is stored to lower the DHW production costs and maximise the energy saving.
SOLAR MANAGEMENT
Solar thermal compatible: the unit can work with a second energy source such as solar panels (solar circulator management). Valid only for model 360S.
Solar thermal compatible: the unit can work with a second energy source such as solar panels (solar circulator management). Valid only for model 360S.

Features

  • Available in two versions: standard model with heat pump, electric heating element and 202-litre tank (Sherpa SHW S2 200); model with coil for solar panels or other energy sources, electric heating element and 251-litre tank (Sherpa SHW S2 260S).
  • COP>2,6* DHW at 65°C (75°C with electric heating element)
  • Energy class: A+
  • Working range with heat pump and air temperature from -10C° to 43C°.
  • Enamelled steel tank.
  • Anti-corrosion magnesium anode to ensure tank durability.
  • Condenser wound outside the boiler free from deposits and gas-water contamination.
  • Rigid polyurethane foam (PU) thermal insulation, thickness 50mm.
  • External plastic cladding. Soundproof plastic top cover.
  • High-efficiency compressor with R134a refrigerant**.
  • Electric heating element available in the unit as back-up which ensures hot water at a constant temperature even in extreme winter or summer conditions.
  • ON-OFF contact to start the unit via an external switch.
  • Weekly sanitisation cycle.
  • Option to manage the domestic hot water recirculation or solar heating integration. Valid only for model 260S
  • Electronic expansion valve for a timely check.
