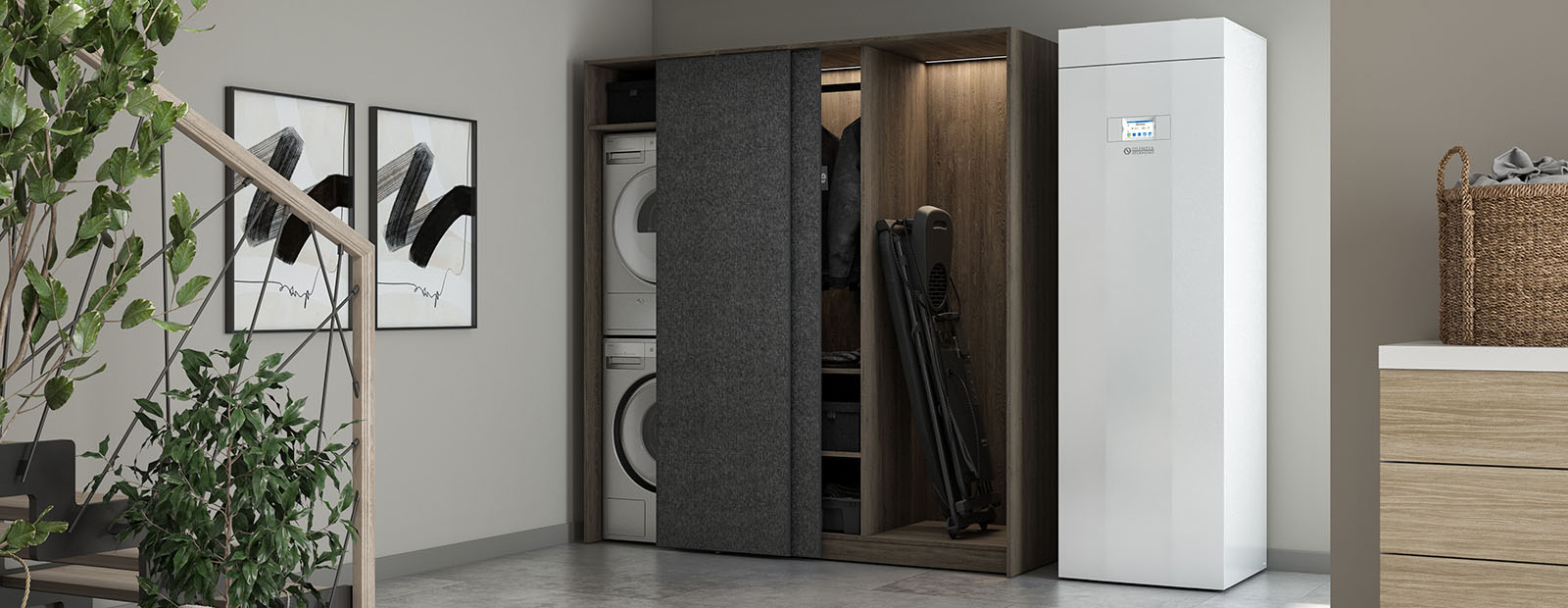

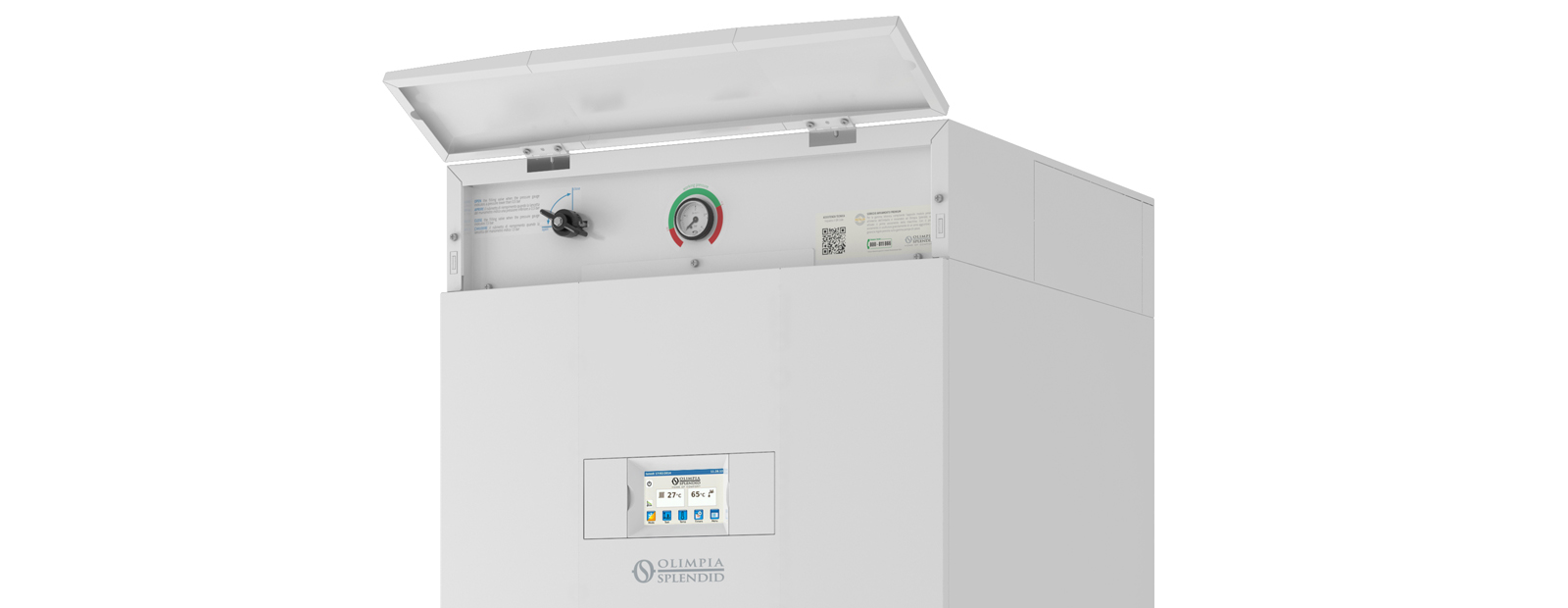

Olimpia Splendid's air-to-water heat pump, with R32 refrigerant and integrated 200 litre storage tank, stands out for its high energy efficiency class, both in heating and domestic hot water production, for its compact size (60x60 cm) and great ease of installation. Sherpa Tower S3 can be positioned even in the tightest spaces and makes installation particularly "clean", thanks to the flexibility of the refrigeration and plumbing connections and the complete equipment. Great ease, finally, also on the controls front: through a configurable touchscreen user interface it is possible to customise comfort and DHW requirements and optimise energy performance, quickly and intuitively.
Inverter air-water heat pump
Energy efficiency class in average climate heating up to: A+++ (35°C)
and A++ (55°C)
Powers available: 4 Powers with refrigerant R32: 4-6-8-10 kW singlephase
and 3 Powers with refrigerant R410A: 12-14-16 kW single-phase and
three-phase
Supplies DHW with temperature up to 60 ° C..
Climatic curves based on the external air temperature: two curves
available, one for cooling and one for heating.
The climatic curves are used to vary the system temperature according
to the external climatic conditions, adjusting the ‘’heat input to the
building’s thermal needs, in order to achieve energy savings.
Two configurable set points in cooling, Three configurable set points in
heating (one of which for DHW): the set points can also be selected from
a remote contact.
Standard double-stage electric heating elements: configurable as single
or double-stage, it can be activated to support the heat pump, checking,
via the electronic control, the actual heat output of the heat pump. Each
stage is activated according to the actual need for thermal power, in order
to optimise electricity consumption.
Daily, holiday and weekly programmer: heating/cooling, DHW, night.
Complete management of the anti-legionella cycles.
Refrigerant gas R32* or R410A*
Storage tank 200 L high efficiency.
Components included: system filling valve, 3-way valve and 2 expansion
valves (technical water and DHW)
Integrated thermostatic mixer
