Ci2 WALL

The high-wall hydronic fan coil unit with DC inverter motor cools, dehumidifies, heats and filters the air with a total cooling output of up to 3.81 kW and heating output of up to 4.30 kW. Installation and maintenance are simplified with the flexible hoses and three-way valves provided. The remote control, supplied as standard, allows setting all the functions and customising the direction of the air flow by adjusting the motorised flap.

REQUEST INFORMATION Download

Overview

PRO-POWER
Maximum power 3.81 kW in cooling and 3,18 kW in
heating mode.
Maximum power 3.81 kW in cooling and 3,18 kW in
heating mode.
3-WAY VALVE INCLUDED
The terminal is equipped with an integrated 3-way valve for easy installation.
The terminal is equipped with an integrated 3-way valve for easy installation.

Features

Cools, Dehumidifies, Heats and Filters

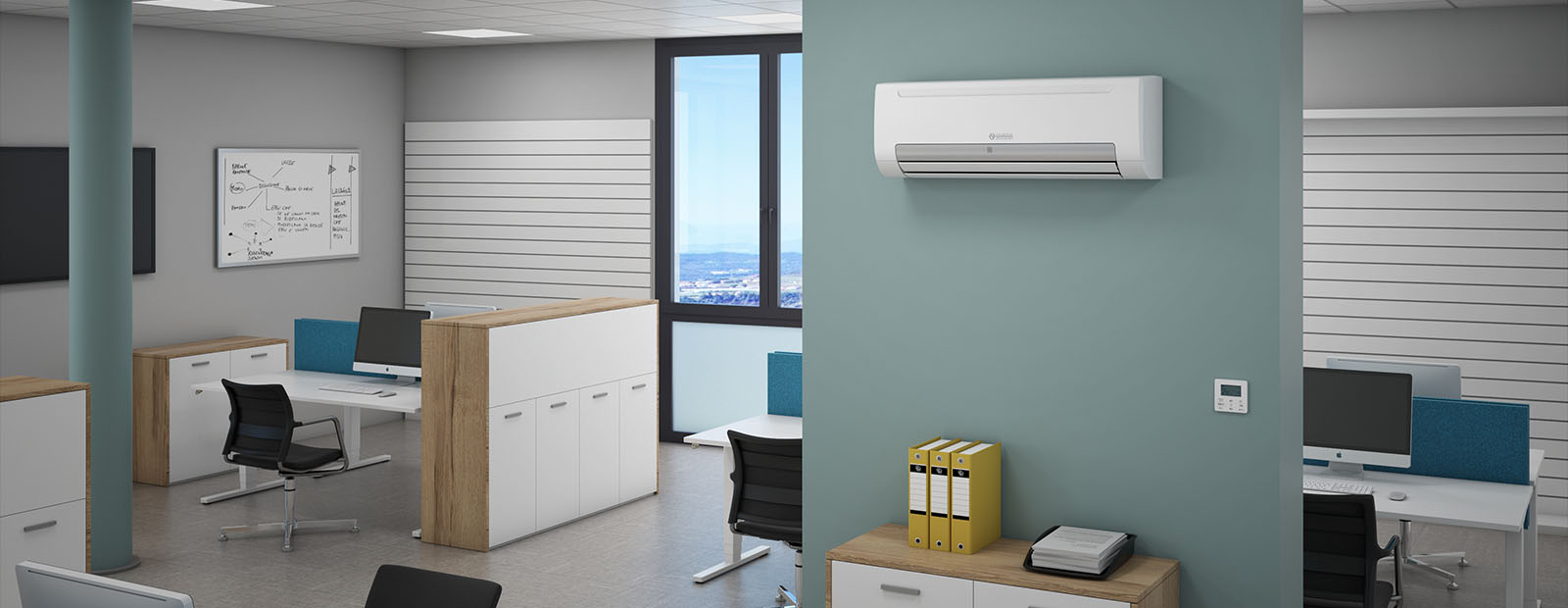

High-wall installation
Three-way solenoid valve supplied
Available in two sizes: LGW 1200 DC / LGW 1400 DC
Total cooling capacity* : 2,7 kW / 3,81 kW
Heating capacity (50°C)** : 2,94 kW / 4,3 kW
With motorised flap
Installation facilitated via flexible connection
Remote control e wall fixing bracket
Plastic body
Easy maintenance through the removable front panel
Optional: B0856 - Wall-command with LCD display for fan speed control and temperature setting
Minimum Sound Pressure: 38 dB(A)

*Cooling mode in standard conditions: air temperature 27°C d.b. 19°C w.b., water inlet temperature 7°C, water outlet temperature 12°C
**Heating mode in conditions of use 1: air temperature 20°C d.b., 15 °C w.b. max, water inlet temperature 50°C, water flow rate equal to that of standard condition cooling
