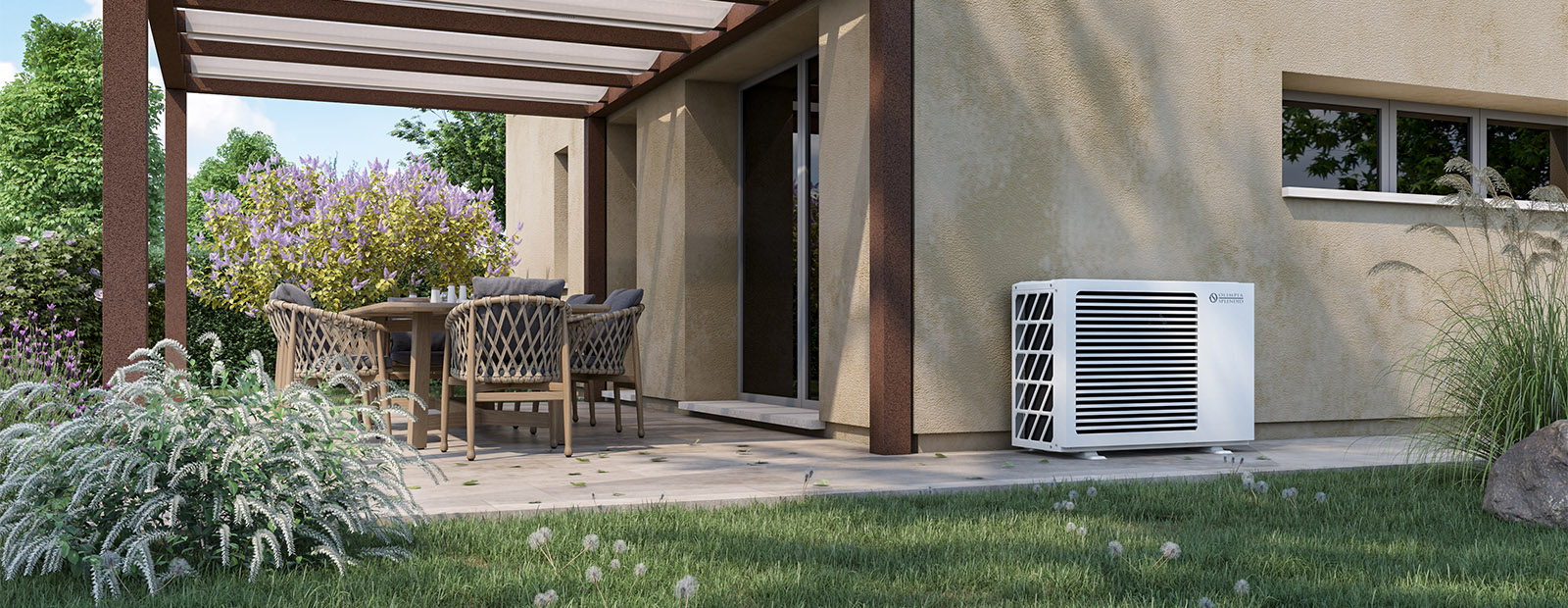

The Olimpia Splendid air-water heat pump, with R-290 refrigerant, provides efficient climate control with a GWP close to zero and produces DHW up to 70°C without additional electrical heating elements. It allows up to 8 units (of the same size) to be connected to create a system with a power output of up to 120 kW, with a small footprint thanks to the compact design of the individual single-fan units.
Inverter air-water heat pump
Energy efficiency class in average climate heating up to: A+++ (35°C) and A++ (55°C)
Powers available: 6 powers with refrigerant R290 single-phase (6-9-12-15 kW) and three-phase (12-15 kW).
Provides DHW with temperature up to 70° C.
Compressor: twin rotary DC.
Expansion valve: electronic.
Fan with brushless DC motors.
External air sensor integrated into the machine.
Domestic hot water boiler sensor: supplied as standard with the machine.
Cascade management: up to 8 units can be connected (of the same size), 1 Master and 7 Slaves (only the Master unit can produce domestic hot water).
R290 refrigerant gas
