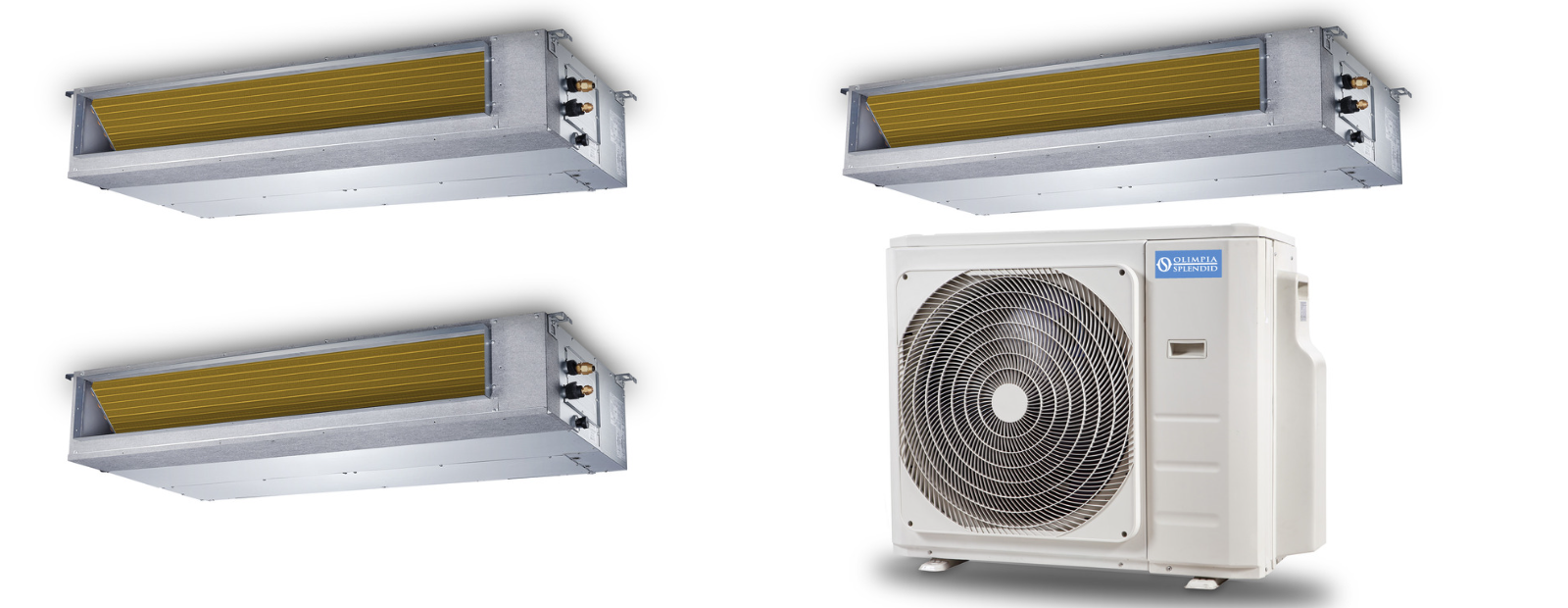

NEXYA MULTI DUCT [OS4/S5+IS5]

Olimpia Splendid's multi-split allows the connection of up to 5 ducted indoor units with the use of a single external motor, selecting sizes according to the system's heat load.

The ducted units stand out for their high head (static pressure available up to 160 Pa) and particularly compact dimensions (210 mm high).

Thanks to the automatic air flow setting function, Nexya Multisplit adapts autonomously according to the ducting connected to the unit.

REQUEST INFORMATION Download

Overview

AUTOMATIC SETTING
To automatically adapt the system depending on the ducts connected
To automatically adapt the system depending on the ducts connected
SLIM DESIGN
The range is characterised by its slim dimensions (Height from 200 mm)
The range is characterised by its slim dimensions (Height from 200 mm)
DIGITAL DISPLAY
Display on the outside of the internal unit to guaranteed he best signal reception from the remote control.
Display on the outside of the internal unit to guaranteed he best signal reception from the remote control.
FOLLOW ME
The remote control acts as a remote thermostat to ensure correct temperature control in the point where the occupants are present in the room.
The remote control acts as a remote thermostat to ensure correct temperature control in the point where the occupants are present in the room.

Features

Energy-efficient inverter technology with low GWP R32 refrigerant
Available in dual, trial, quadri and penta versions, to air-condition up to five rooms with the use of a single external motor.
The system is modular: systems can be designed using wall-mounted indoor units by selecting the right size according to the system's heat load.
Check Olimpiasplendid.it for combinations that can qualify for incentives.
Automatic air flow rate setting
Innovative automatic air flow rate setting function to automatically date the system according to the ducting connected to the unit.
Reversible Air Return
The air intake duct can be moved from the rear of the product (standard configuration) to the bottom of the product, replacing it with a sheet metal panel. This makes the product suitable for any installation conditions.
Fresh air intake intake
The indoor units of the commercial line are equipped with specific air intake inlets for the introduction of external or fresh air into the product.
Condensate Lifting Pump
Indoor units are equipped with a condensate lifting pump (except for size 9 and 12).
