Unico Twin

The no outdoor unit system for the air-conditioning of two rooms.

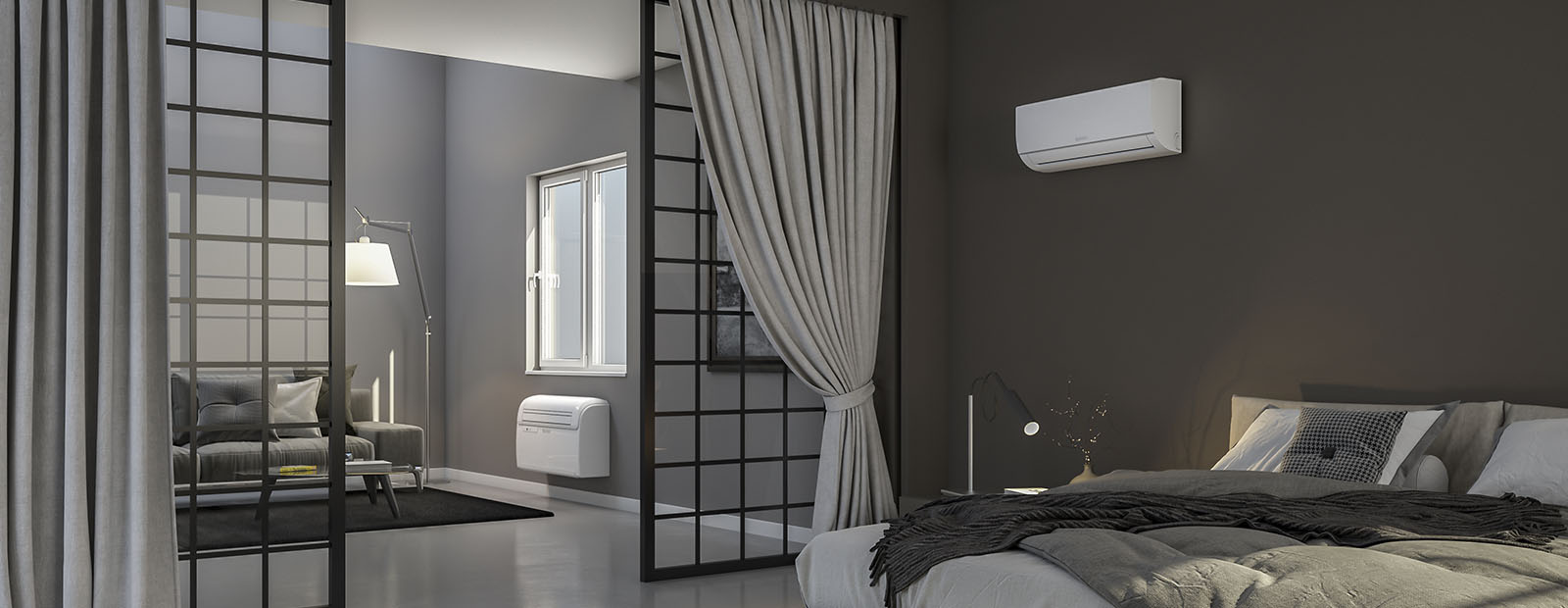

It is composed by the UNICO TWIN MASTER unit and the new UNICO TWIN WALL S1 unit that, linked by a cooling circuit, air-condition 2 rooms without outdoor unit. The outdoor unit? Removed! Only two holes can be seen on the external surface.



REQUEST INFORMATION Download

Overview

TWIN TECHNOLOGY
Twin technology allows the use of the two units (Master unit and Wall unit) simultaneously or separately depending on requirements, both in heating and cooling mode.
Twin technology allows the use of the two units (Master unit and Wall unit) simultaneously or separately depending on requirements, both in heating and cooling mode.
PURE SYSTEM
Equipped with a multi-filtering system, consisting of an electrostatic filter (with anti-dust function) and activated carbon filter (effective against unpleasant odours).
Equipped with a multi-filtering system, consisting of an electrostatic filter (with anti-dust function) and activated carbon filter (effective against unpleasant odours).
HEAT PUMP
Heat pump air conditioner. Thanks to this feature you you can replace or support traditional heating in intermediate seasons.
Heat pump air conditioner. Thanks to this feature you you can replace or support traditional heating in intermediate seasons.

Features

SYSTEM features
Independent or combined mode: if you choose simultaneous mode the two units share the available power *
Available in version: HP (Heat pump)
Class A
Refrigerant gas R410A**
Multifunction double remote control
24h Timer

MASTER features
Cooling capacity: 2.6 kW
HP mode capacity (heat pump): 2.5 kW
Installation versatility: top or bottom wall installation
Possible glass installation*
Easy installation: Unico Twin can be installed from the inside in a few minutes
Large flap for a homogeneous diffusion of the air in the environment

WALL S1 features
Nominal cooling capacity: 2.5 kW
Nominal heating capacity: 2.2 kW
Sound power level: 46 dB(A)

FUNCTIONS
Fan only mode
Dehumidification only mode
Auto mode: changes parameters depending on ambient temperature.
Sleep mode: gradually increases the temperature set and ensures reduced
noise for greater wellbeing at night.

* During simultaneous operation the inside units are forced at minimum speed.
** Not ermetically sealed equipment containing fluorinated gas with GWP equivalent 2088.
